DIAMOND ROUTER BIT OF PRODUCT INTRODUCE:
Diamond Router Bit is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Diamond can be firmly fixed on the matrix, its working layer has two kinds of arc and trapezoid, which are used to process the edge of the inner circle glass into round arc or trapezoid. Each diamond milling cutter have water holes above, which can help to reduce the working temperature and chippings discharged in the working.The commonly used diameter have 16mm,18mm,20mm, 22mm,processing glass thickness is 4-19mm,the thread size at the interface is 1/2 ", 1/4".It can be used in all kinds of CNC machining centers.Diamond size or other special parameters can be customized.
DIAMOND ROUTER BIT OF ADVANTAGE:
High cutting speed, high efficiency; super long service life,etc.

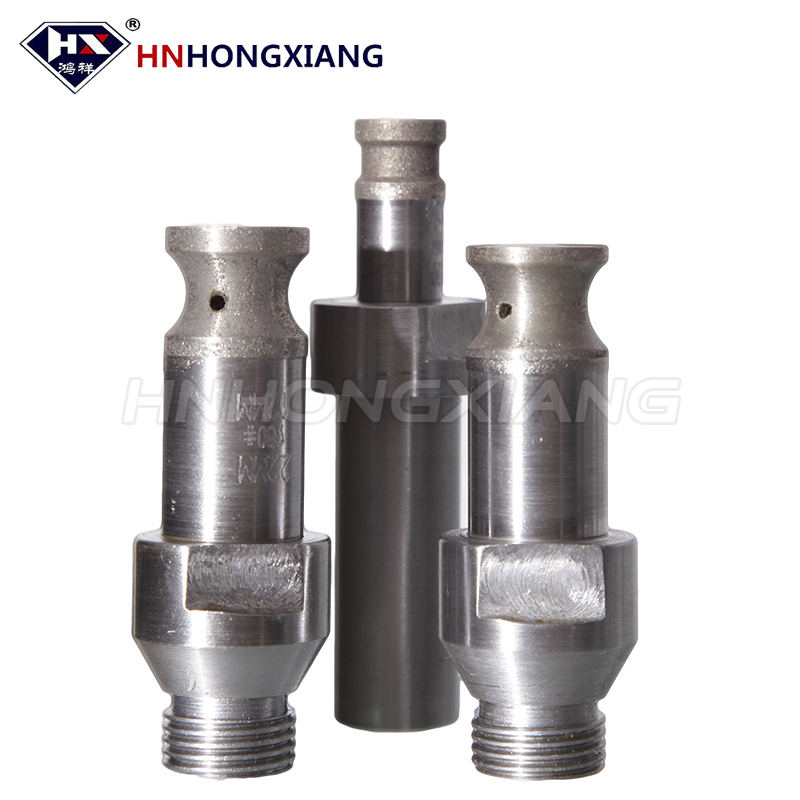

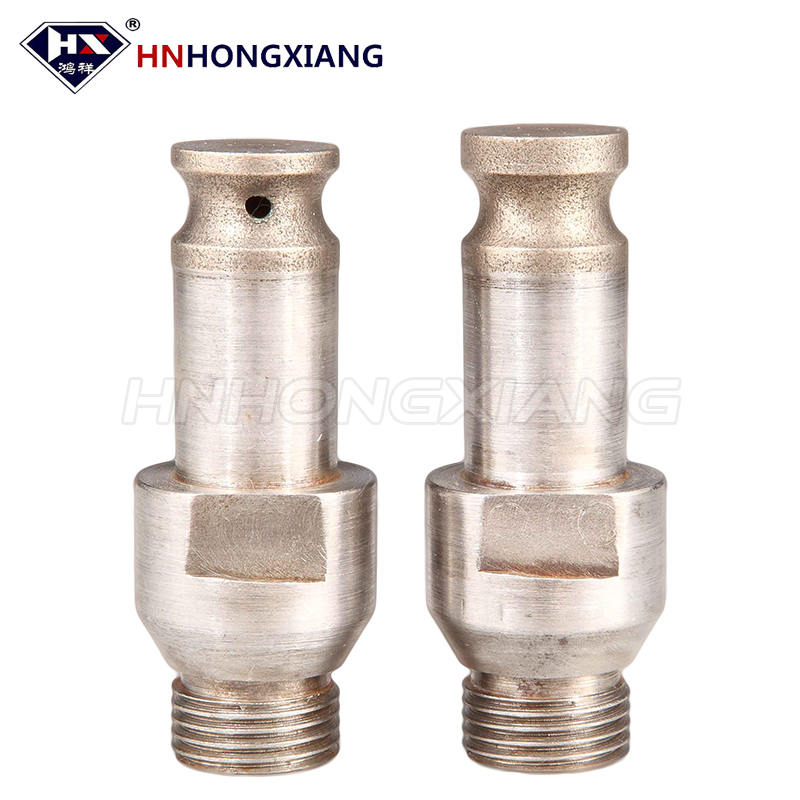

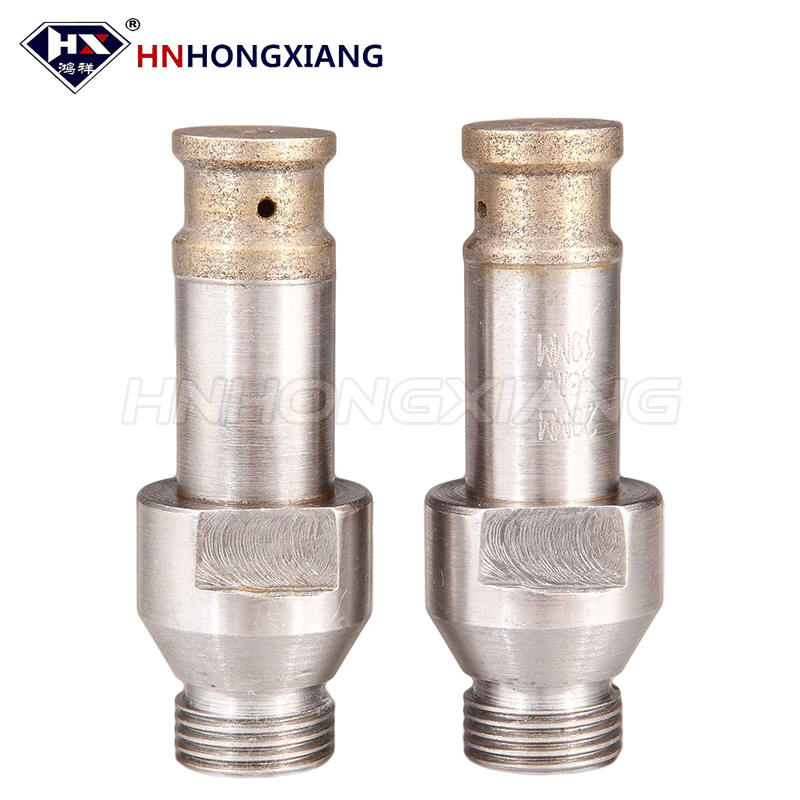

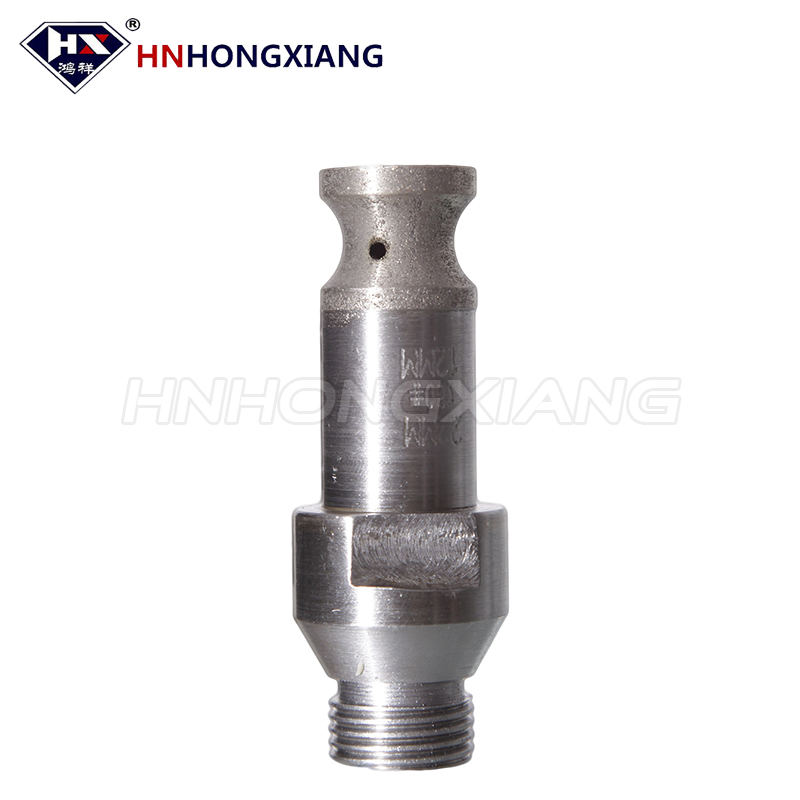

DIAMOND ROUTER BIT OF PICTURE AND DRAWING:
DIAMOND ROUTER BIT OF GENERAL PARAMETER:
Diameter（mm） | Thickness of glass（mm） |
16 | 3 |
16 | 3 |
18 | 3 |
18 | 4 |
20 | 3 |
20 | 4 |
20 | 5 |
20 | 6 |
20 | 8 |
20 | 10 |
20 | 12 |
20 | 15 |
20 | 19 |
22 | 3 |
22 | 4 |
22 | 5 |
22 | 6 |
22 | 8 |
22 | 10 |
22 | 12 |
22 | 15 |
22 | 19 |
ATTENTION：DIAMOND SIZE OR OTHER SPECIAL PARAMETERS CAN BE CUSTOMIZED | |
DIAMOND ROUTER BIT OF APPLICATION:
Diamond Router Bit is widely used for grinding inner glass hole`s edge.such as, architectural glass, home appliances glass, bathroom glass, kitchenware glass, furniture glass and so on.
DIAMOND ROUTER BIT FOR APPLICABLE MACHINE:
Automatic drilling machine and CNC processing center
Diamond milling cutters are mainly used in CNC machining centers for milling, grooving, cutting of glass,which can process the edge of the inner circle glass into round arc or trapezoid shapes. Diamond Router Bit can work with CNC milling cutter, diamond grinding wheel, diamond chamfering wheel and polishing wheel,etc.
PROCESSING ENVIRONMENT AND MACHINERY
FAQ( FREQUENTLY ASKED QUESTIONS)
1, Diamond Router Bit is Available for customized?
Answer: Yes! We can produce according to your specifications demand.
2, The size of the thread interface is Available for customized?
Answer: Yes! We can produce according to your specifications demand.
3, What is your terms of payment?
Answer: T/T，Paypal, cash, L/C, online ,money grams and Western Union etc.
4, What is your terms of transportation?
Answer: TNT, DHL, EMS, Fedex,UPS,by air, by sea, china post and E-packed.etc.
