DIAMOND COUNTERSINK SLEEVES OF PRODUCT INTRODUCE:

Diamond Countersink Sleeves is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Diamond can be firmly fixed on the matrix, and not easy to fall off. Commonly used Diamond Countersink Sleeves diameter is 5-100mm, wall thickness is 3mm.

In the chamfering glass`s hole ,Diamond Countersink Sleeves should work with the same size of the diamond drill bit, can achieve the completion of drilling and chamfering at the same time,and the dimensions of the machining are more accurate. Diamond size or other special parameters can be customized.

DIAMOND COUNTERSINK SLEEVES OF ADVANTAGES:

High wear resistance, low noise, long service life, The surface of the glass hole is more smooth, no broken edge, Can be flexibly applied to the holes smaller than itself.

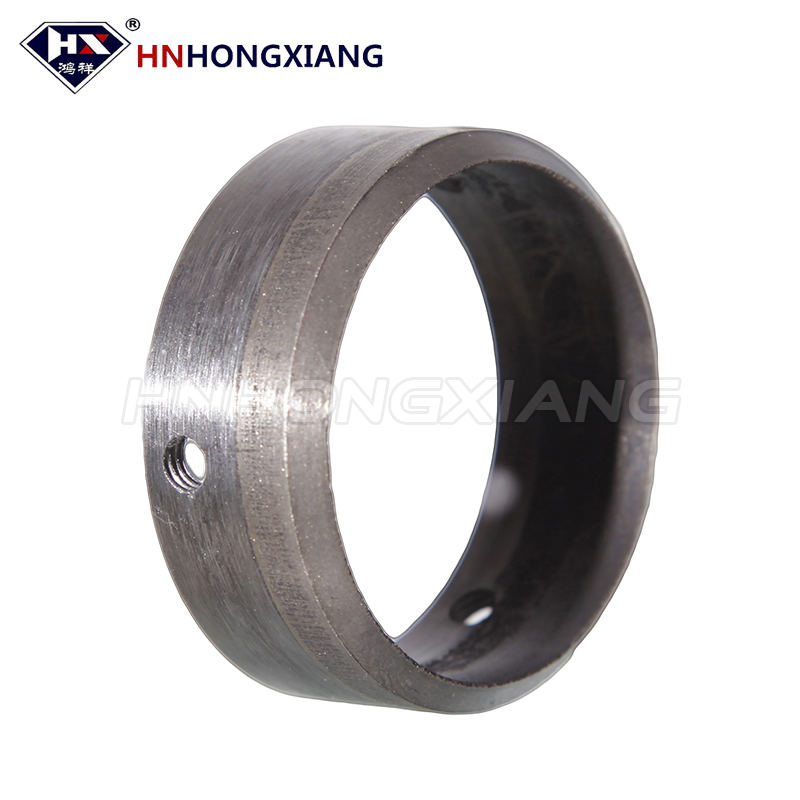

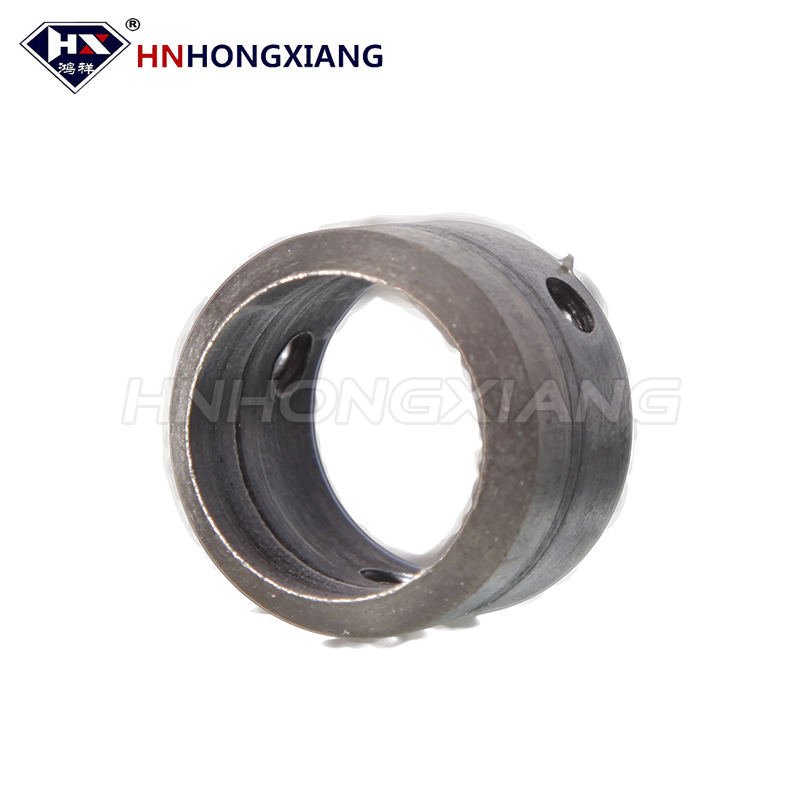

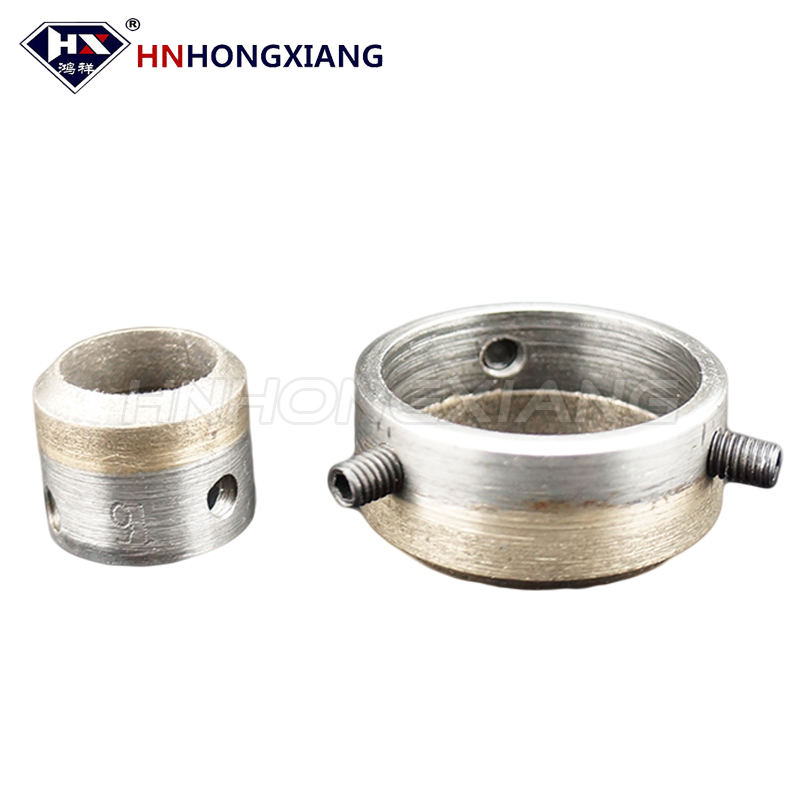

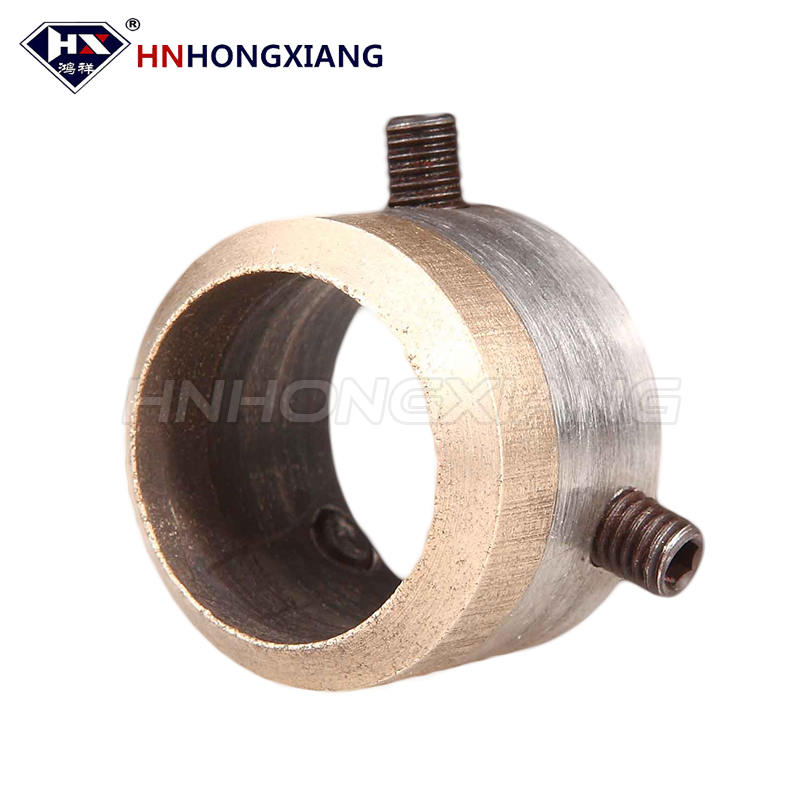

DIAMOND COUNTERSINK SLEEVES OF PICTURES AND DRAWING：

DIAMOND COUNTERSINK SLEEVES OF APPLICATION:

The diamond countersink sleeves is used to match with the diamond thread shank drill bit, diamond straight shank drill bit and diamond cone shank drill bit.Which are used to meet glass`s holes chamfering after be drilled. In particular, the diameter need to be required between 5 to 100 mm,Such as processing some precision instruments of the glass.

PROCESSING FOR MACHINES

ATTENTION FOR USING DIAMOND COUNTERSINK SLEEVES:

1,The size of the diamond countersink sleeves should be the same as the size of the diamond drill bit in the using.

2,Make sure that both of working layers should be connect tightly in the installation.

3,Make shure that the diamond countersink sleeves and diamond drill bit are firmly fixed.

FAQ( FREQUENTLY ASKED QUESTIONS)

1, Diamond Countersink sleeves`s diameter is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

2, What is your terms of payment?

Answer: T/T，Paypal, cash, L/C, online ,money grams and Western Union etc.

3, What is your terms of transportation?

Answer: TNT, DHL, EMS, Fedex,UPS,by air, by sea, china post and E-packed.etc.
