Resin diamond grinding wheel adopt aluminum as the matrix, mixed with a certain formula of premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Commonly used in glass straight edging machine and double edging machine for the medium grinding and chamfering.

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF ADVANTAGE:

Good sharpness, no chipping, better wear resistance, long service life, can grind glass with a variety of thickness .etc.

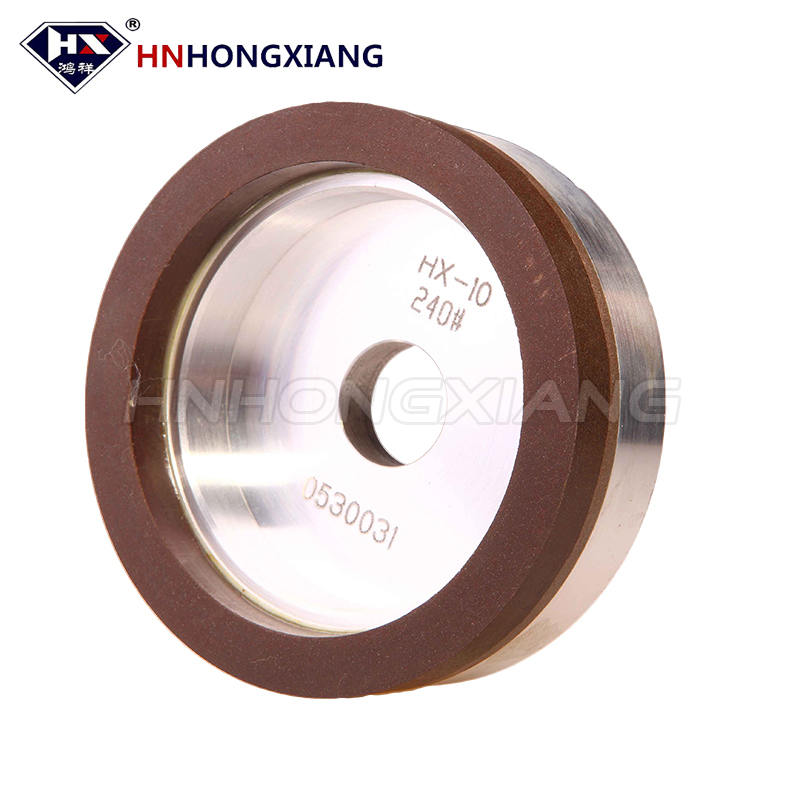

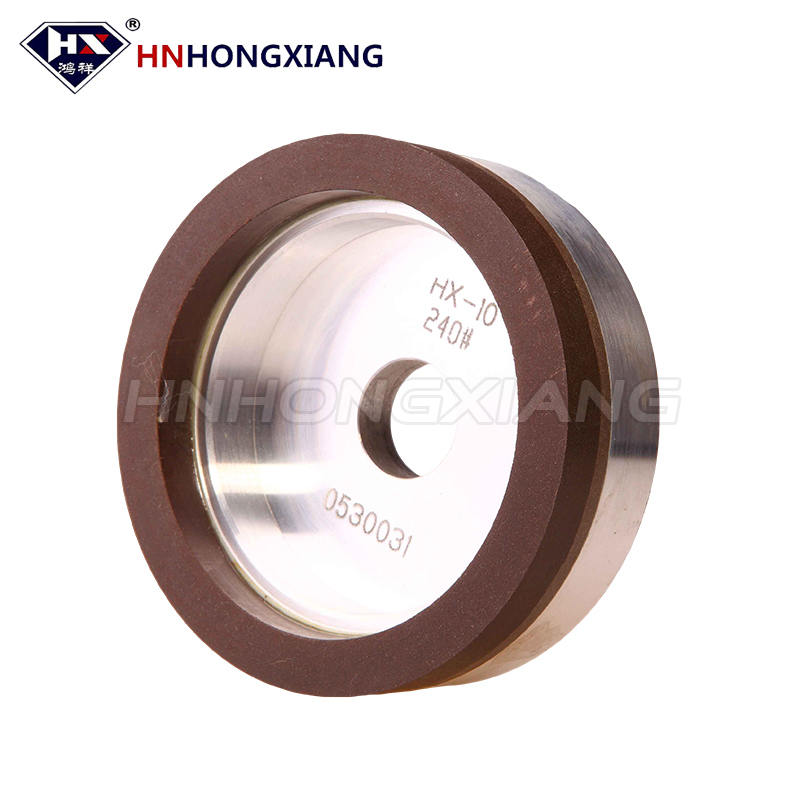

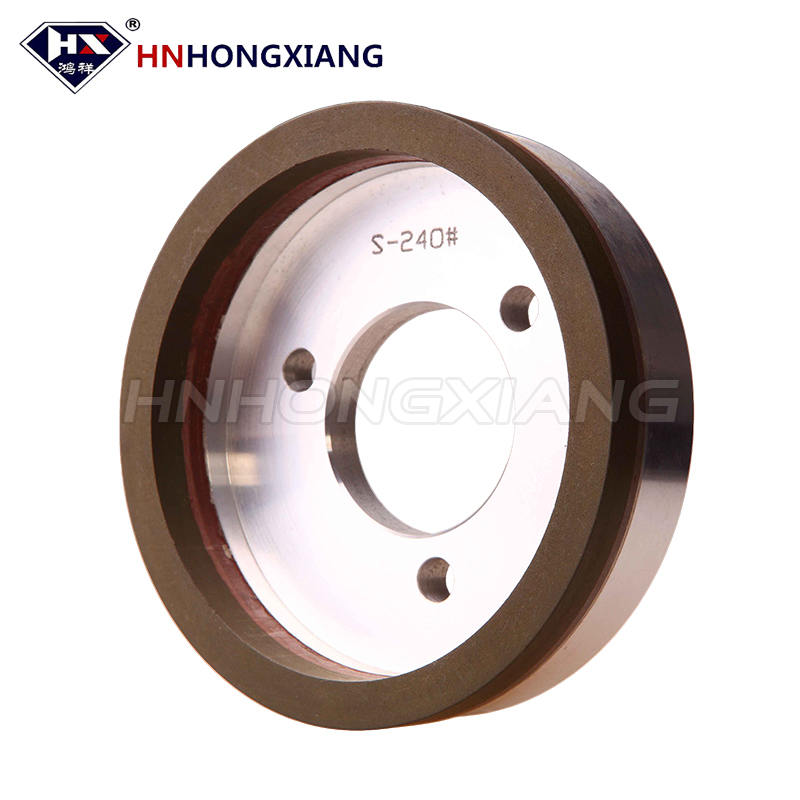

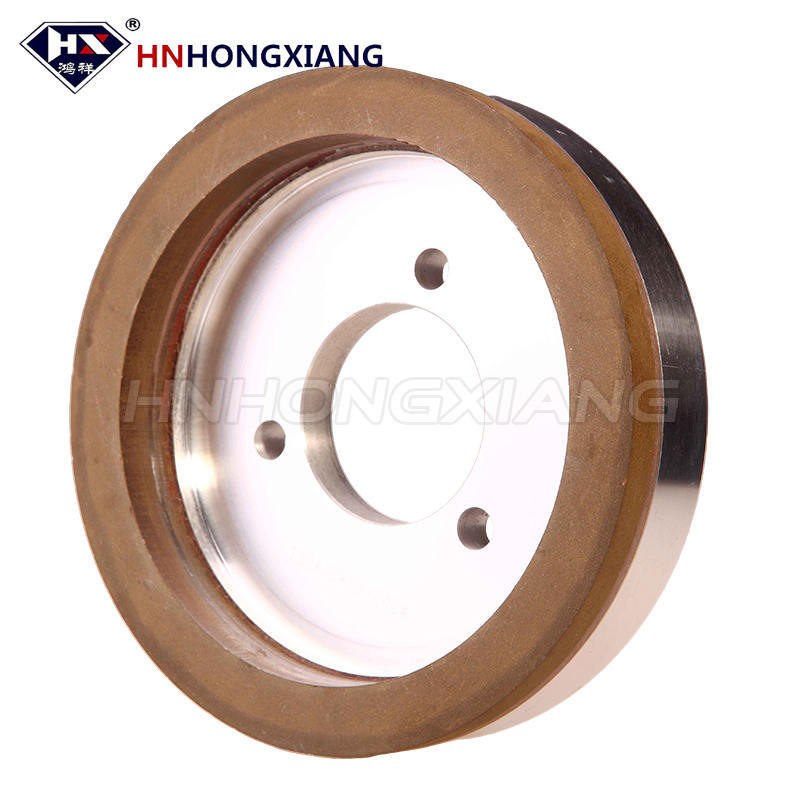

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF PICTURES AND DRAWING:

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF GENERAL PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS.

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL)OF APPLICATION:

Resin diamond grinding wheel is commonly used for processing of construction glass, furniture glass, electronics glass, appliances glass, and bothroom glass,etc. Such as architectural glass doors and windows, glass table, glass rods, indoor screen glass,glass office partition wall, etc.

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) FOR APPLICABLE MACHINE:

glass straight edging machine, glass double edging machine.

Located at straight edging machine and double edging machine`s 2# ,3# grinding motor for medium grinding, the diameter of 150mm`s wheel will be chosen for medium grinding,diamond grits is 180#; Located at straight edging machine and double edging machine`s 3# ,4#,5# grinding motor, the diameter of 130mm`s wheel is used for chamfering,diamond grits is 240#. Glass thickness is from 3 to 30mm can be grinding. Of course, We can provide professional guidance on the choice of grinding wheel and the installation,according to our customer`s need.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

      Located at 2# ,3# grinding motor

HESE WHEELS CAN BE WORKED WITH TOGETHER:

Continuous diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
